#include <RModifyObjectOperation.h>

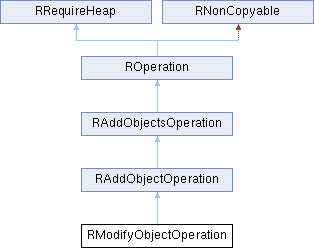

Inheritance diagram for RModifyObjectOperation:

Public Member Functions
	RModifyObjectOperation (QSharedPointer< RObject > object, bool undoable=true)
	Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual	~RModifyObjectOperation ()

Public Member Functions inherited from RAddObjectOperation
	RAddObjectOperation ()

	RAddObjectOperation (QSharedPointer< RObject > object, bool useCurrentAttributes=true, bool undoable=true)

	RAddObjectOperation (QSharedPointer< RObject > object, const QString &text, bool useCurrentAttributes=true, bool undoable=true)
	Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual	~RAddObjectOperation ()

Public Member Functions inherited from RAddObjectsOperation
void	addObject (const QSharedPointer< RObject > &object, bool useCurrentAttributes=true, bool forceNew=false)

void	addObject (const QSharedPointer< RObject > &object, RAddObjectsOperation::Flags flags)

virtual RTransaction	apply (RDocument &document, bool preview=false)
	Applies this operation to selection in the given document. More...

void	deleteObject (const QSharedPointer< RObject > &object)

void	endCycle ()

QSharedPointer< RObject >	getObject (RObject::Id id)

int	getPreviewCounter () const

bool	isEmpty ()

	RAddObjectsOperation (bool undoable=true)
	Copyright (c) 2011-2018 by Andrew Mustun. More...

	RAddObjectsOperation (QList< QSharedPointer< RObject > > &list, bool useCurrentAttributes=true, bool undoable=true)

void	replaceObject (const QSharedPointer< RObject > &object, bool useCurrentAttributes=true)
	Adds the given object to this operation or replaces an object already present with the same ID. More...

void	setLimitPreview (bool on)

virtual	~RAddObjectsOperation ()

Public Member Functions inherited from ROperation
RS::EntityType	getEntityTypeFilter () const

QString	getText () const

int	getTransactionGroup () const

bool	getTransactionType (RTransaction::Type t) const

RTransaction::Types	getTransactionTypes () const

	ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)

void	setAllowAll (bool on)

void	setAllowInvisible (bool on)

void	setKeepChildren (bool on)
	Keep child entities (e.g. More...

void	setRecordAffectedObjects (bool on)

void	setSpatialIndexDisabled (bool on)

void	setText (const QString &t)

void	setTransactionGroup (int g)

void	setTransactionType (RTransaction::Type t, bool on=true)

virtual	~ROperation ()

Public Member Functions inherited from RRequireHeap
void	doDelete ()

Additional Inherited Members
Public Types inherited from RAddObjectsOperation
enum	Flag { NoFlags = 0x000, UseAttributes = 0x001, ForceNew = 0x002, GeometryOnly = 0x004, Delete = 0x008 }

Protected Member Functions inherited from RRequireHeap
virtual	~RRequireHeap ()

Protected Attributes inherited from ROperation
bool	allowAll

bool	allowInvisible

RS::EntityType	entityTypeFilter

bool	keepChildren

bool	recordAffectedObjects

bool	spatialIndexDisabled

QString	text

int	transactionGroup

RTransaction::Types	transactionTypes

bool	undoable

Detailed Description

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD. Implementation of an operation that adds entities.

Scriptable:\nThis class is available in script environments.\n

Constructor & Destructor Documentation

◆ RModifyObjectOperation()

RModifyObjectOperation::RModifyObjectOperation	(	QSharedPointer< RObject >	object,
		bool	undoable = `true`
	)

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ ~RModifyObjectOperation()

virtual RModifyObjectOperation::~RModifyObjectOperation ( )

inlinevirtual

The documentation for this class was generated from the following files:

src/operations/RModifyObjectOperation.h
src/operations/RModifyObjectOperation.cpp
