FS#1446 - New Polygon tool

Hi,

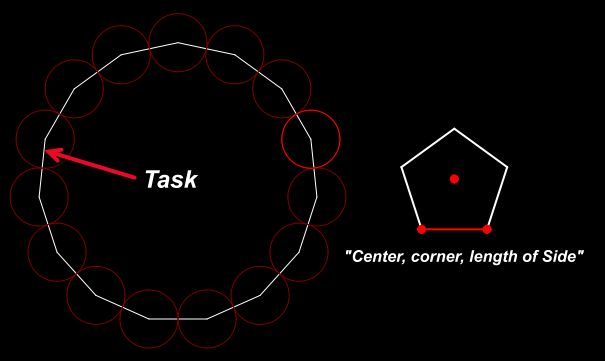

if I need to design a bolt circle (circle on circle) and the single bolt diameter and the quantity of circles are given then I can use the QCAD Polygon Tool “Polygon 2 Points of Side” ... but for the Length of the side I have to do a workaround (Line with this length) to determine the desired length.

It would be very convenient to have an additional tool for a Polygon which has the possibility to ask me for the center, corners and the length of the sides.

CVH commented on 30.10.2022 10:11

Husky,

Why not using relative notation?
- PG2, select number of sides
- First point.
- Second point with a relative distance to the first by the command line.
Done.

Regards,
CVH
