FS#741 - An additional Radius Measurement tool ...

It would be nice to have an additional Radius Measurement tool with short leads. The current Radius tool shows always the lead line to the center of the radius what is in many cases not useful.

I’m not asking for a workaround ;-)

ra_vy commented on 05.12.2022 19:19

I'd really appreciate this addition.

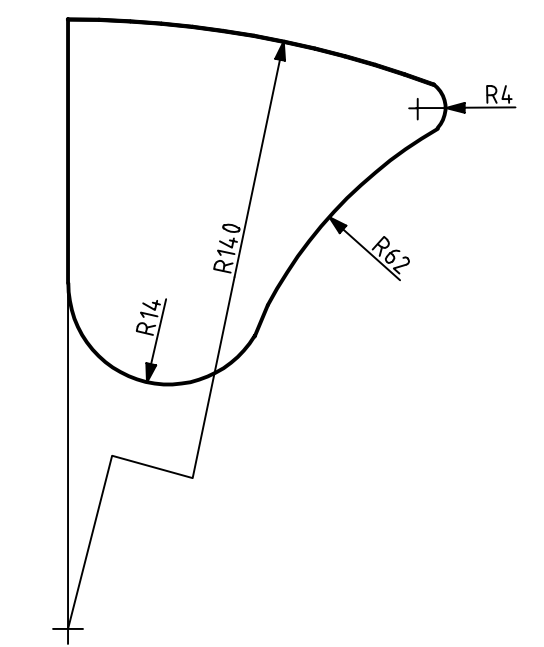

BTW this is perfectly fine according to the ISO standard saying: "Where the centre of a radius falls outside the available space, the dimension line of the radius shall be either
broken or interrupted perpendicular according to whether or not it is necessary to locate the centre."
