QCAD 3.11.0

Post by andrew » Tue Oct 06, 2015 12:26 pm

QCAD 3.11.0 has been released with many new tools, features, improvements, added user preferences and a new command line tool:
- Draw > Arc with Height
- Draw > Ring
- Define polyline widths per segment (View > Property Editor)
- dwg2maptiles: batch convert drawings to bitmap tiles for use with online maps, for example leaflet.js

A complete change log is available at:
http://www.qcad.org/en/qcad-documentati ... -changelog

Update instructions for QCAD Pro or QCAD/CAM users can be found at:
http://www.qcad.org/en/customer-area
Screen Shot 2015-10-06 at 12.57.33.png
Draw > Ring
Screen Shot 2015-10-06 at 12.57.33.png (29.34 KiB) Viewed 6400 times
Screen Shot 2015-10-06 at 13.17.31.png
Polyline Widths
Screen Shot 2015-10-06 at 13.17.31.png (32.06 KiB) Viewed 6400 times

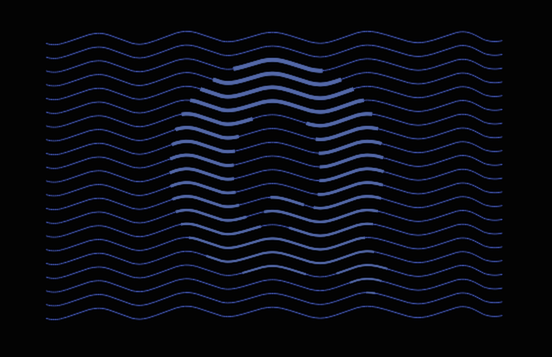

Screen Shot 2015-10-06 at 13.21.17.png
Polyline Widths Effect (Inspired by jvalencia)
Screen Shot 2015-10-06 at 13.21.17.png (154.28 KiB) Viewed 6400 times

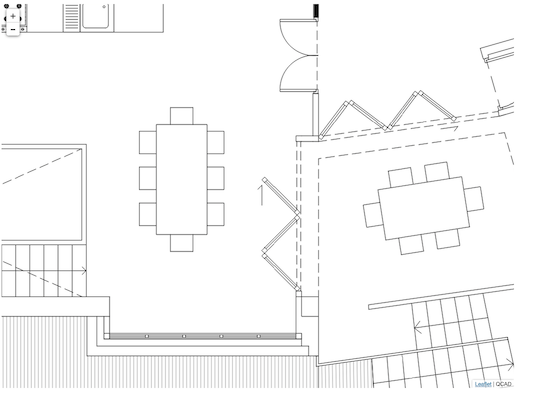

Screen Shot 2015-10-06 at 13.24.35.png
Drawing Exported to leaflet.js Map Tiles (Click for Live Demo)
Screen Shot 2015-10-06 at 13.24.35.png (60.35 KiB) Viewed 6400 times
