dashed linetype (circles ve lines) SOLVED

[bambuko]

I am using dashed line, Dashed (.5x) to be precise, scaled at 0.1 to draw some lines and circles.
Lines display OK, but circles appear solid and not dashed
I am confused...
help, please

[andrew]

Please always attach your file so we can help efficiently, thanks.

[bambuko]

Sorry, didn't think it was worth attaching a file with a single circle in it
I am travelling at the moment without access to Qcad, so will not be able to do it until I am back, but I will asap.

[Husky]

Going to hijack this topic for a moment ...

I am using dashed line, Dashed (.5x) to be precise, scaled at 0.1 to draw some lines and circles.
Lines display OK, but circles appear solid and not dashed
I am confused...

Yep, that annoys me for some time too ...

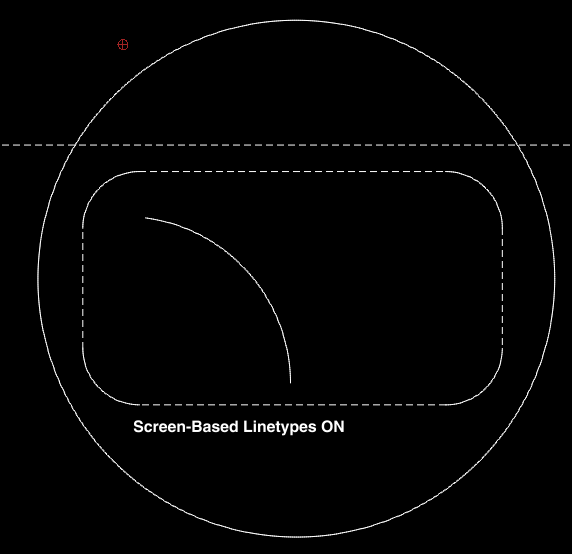

All entities are on the same layer, Dashed .5, 0.35, no scale, Screen-Based Line-types mode "ON", unfortunately (confusingly!) correct rendering fails for arcs and circles.

dashed.dxf

(102.77 KiB) Downloaded 834 times

... back to bambuko!

[CVH]

Yep, that annoys me for some time too ...

Same here:

A: Not using Screen Based the Linetype Scale has to be adequate in relation with the drawing size.
B: Solved for splines entities a while ago.
C: The dashes reappear at a certain deeper zoom state.
D: For some entities dashes may reappear with a higher minimum rendering angle step value.
(App.Prefs. Appearance; Default is 0.2).

Regards,
CVH

[bambuko]

Thank you guys,
glad I am not alone

I have tried different linetype scales to no avail,
I have tried zooming in - made no difference
The only thing I haven't tried is to plot it to see whether it is just display that is wonky
will try rendering angle step when I get back home, but....
as far as I am concerned it is a bug

[CVH]

I have tried zooming in - made no difference

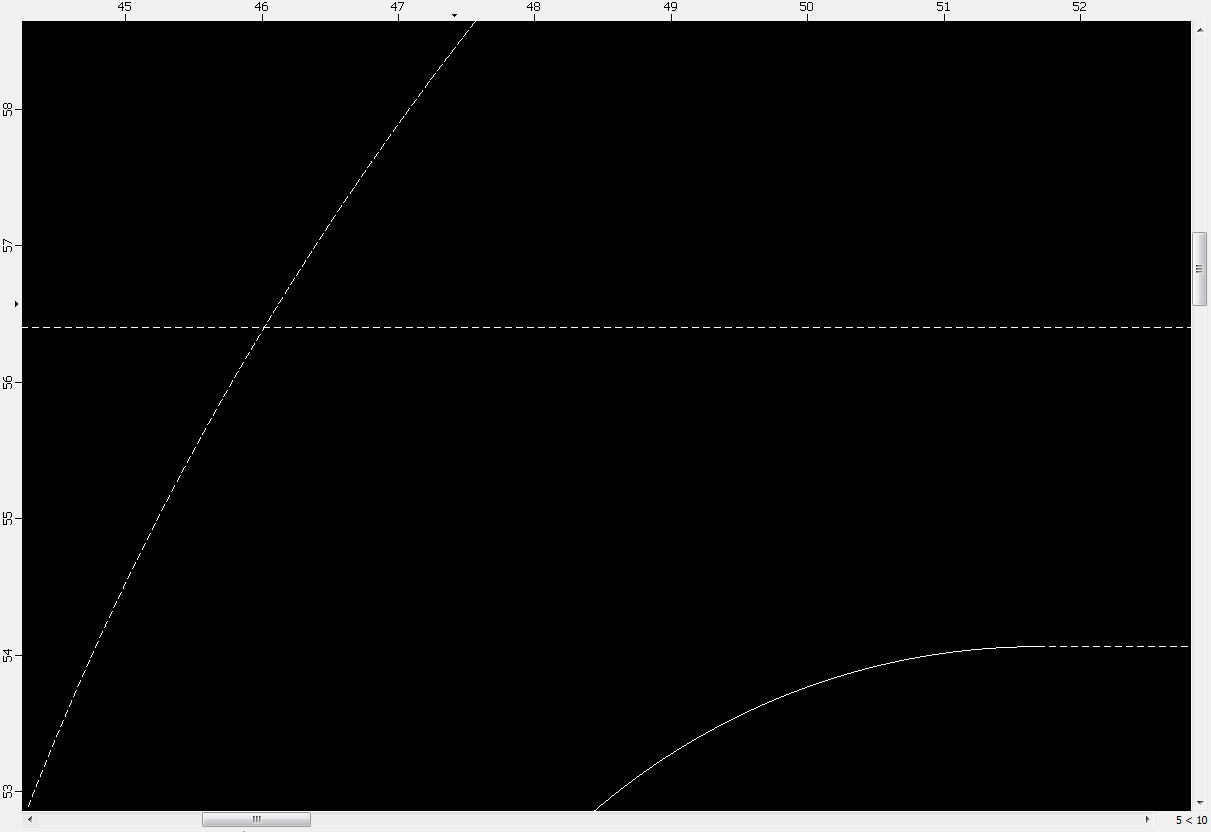

With Husky's file. ScreenBased.


At this zoom state the larger circle looks dashed.

The polyline arc right-low not yet.
There the dashes will reappear when zooming in to about 2x2 units.

For the 1/4 arc in the middle of the drawing dashes will reappear somewhat in between those zoom states.

So it seems radius related ...

Regards,
CVH

[andrew]

Bug report at:
https://www.qcad.org/bugtracker/index.p ... sk_id=2274

[bambuko]

Thank you!
I guess this is another one that should appear at next release?

[bambuko]

Solved with latest (3.26.4.7) - thank you.
