dashed linetype (circles ve lines) SOLVED
Posted: Wed Sep 01, 2021 10:18 am
by bambuko
I am using dashed line,
Dashed (.5x) to be precise, scaled at 0.1 to draw some lines and circles.
Lines display OK, but circles appear solid and not dashed
I am confused...
help, please
Re: dashed linetype (circles ve lines)
Posted: Wed Sep 01, 2021 10:23 am
by andrew
Please always attach your file so we can help efficiently, thanks.
Re: dashed linetype (circles ve lines)
Posted: Thu Sep 02, 2021 9:29 pm
by bambuko
Sorry, didn't think it was worth attaching a file with a single circle in it
I am travelling at the moment without access to Qcad, so will not be able to do it until I am back, but I will asap.
Re: dashed linetype (circles ve lines)
Posted: Thu Sep 02, 2021 10:38 pm
by Husky
Going to hijack this topic for a moment ...
bambuko wrote: ↑Wed Sep 01, 2021 10:18 am
I am using dashed line,
Dashed (.5x) to be precise, scaled at 0.1 to draw some lines and circles.
Lines display OK, but circles appear solid and not dashed
I am confused...
Yep, that annoys me for some time too ...

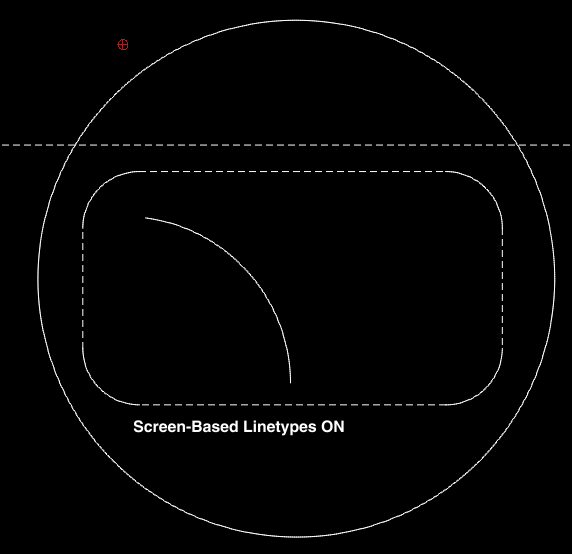

- Husky-2021.09.02-05.png (30.57 KiB) Viewed 10889 times
All entities are on the same layer, Dashed .5, 0.35, no scale, Screen-Based Line-types mode "ON", unfortunately (confusingly!) correct rendering fails for arcs and circles.
... back to bambuko!
Re: dashed linetype (circles ve lines)
Posted: Fri Sep 03, 2021 7:12 am
by CVH
Husky wrote: ↑Thu Sep 02, 2021 10:38 pm
Yep, that annoys me for some time too ...
Same here:
A: Not using Screen Based the Linetype Scale has to be adequate in relation with the drawing size.
B: Solved for splines entities a while ago.
C: The dashes reappear at a certain deeper zoom state.
D: For some entities dashes may reappear with a higher minimum rendering angle step value.
(App.Prefs. Appearance; Default is 0.2).
Regards,
CVH
Re: dashed linetype (circles ve lines)
Posted: Fri Sep 03, 2021 8:17 am
by bambuko
Thank you guys,
glad I am not alone
I have tried different linetype scales to no avail,
I have tried zooming in - made no difference
The only thing I haven't tried is to plot it to see whether it is just display that is wonky
will try rendering angle step when I get back home, but....
as far as I am concerned it is a
bug
Re: dashed linetype (circles ve lines)
Posted: Fri Sep 03, 2021 8:46 am
by CVH
bambuko wrote: ↑Fri Sep 03, 2021 8:17 am
I have tried zooming in - made no difference
With Husky's file. ScreenBased.

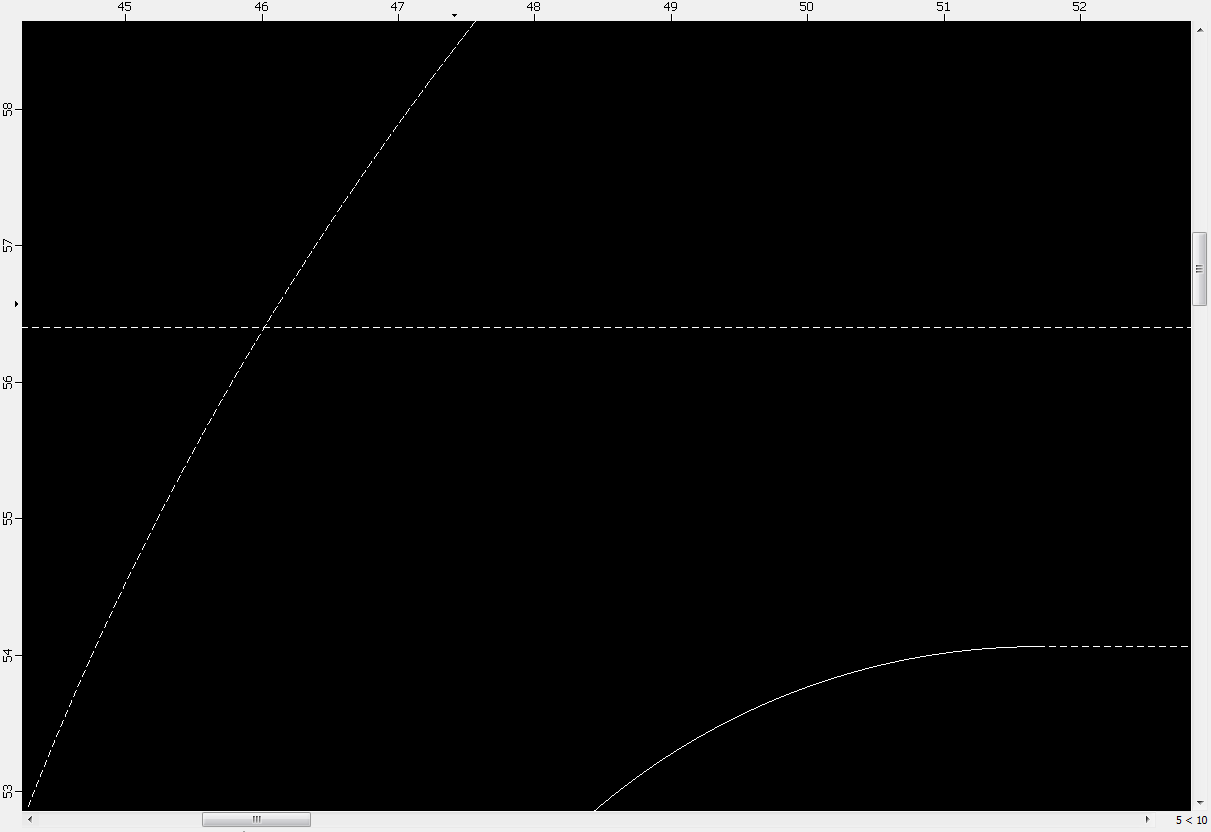

- ZoomedInOnDashes.png (11.09 KiB) Viewed 10849 times
At this zoom state the larger circle looks dashed.
The polyline arc right-low not yet.
There the dashes will reappear when zooming in to about 2x2 units.
For the 1/4 arc in the middle of the drawing dashes will reappear somewhat in between those zoom states.
So it seems radius related ...
Regards,
CVH
Re: dashed linetype (circles ve lines)
Posted: Fri Sep 03, 2021 9:48 am
by andrew
Re: dashed linetype (circles ve lines)
Posted: Fri Sep 03, 2021 6:54 pm
by bambuko
Thank you!
I guess this is another one that should appear at next release?
Re: dashed linetype (circles ve lines) SOLVED
Posted: Sun Sep 19, 2021 10:02 am
by bambuko
Solved with latest (3.26.4.7) - thank you.
