"Polyline Pattern" Property

Tips and tricks you want to share with other users. Tutorials, user submitted documentation, etc.

Moderator: andrew

Post Reply
User avatar
Site Admin
Posts: 7204
Joined: Fri Mar 30, 2007 6:07 am

"Polyline Pattern" Property

Post by andrew » Tue Aug 18, 2015 9:09 am

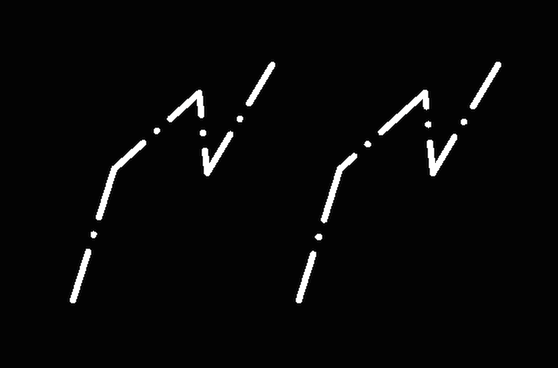

By default, the line type pattern is applied to each segment of a polyline individually (left).
Especially for polylines with many small segments this can result in solid polylines for any pattern.

If Polyline Pattern is set to true, the line type pattern is created over the polyline as a whole (right).
Screen Shot 2015-08-18 at 10.05.08.png
Screen Shot 2015-08-18 at 10.05.08.png (18.74 KiB) Viewed 13295 times

Premier Member
Posts: 1042
Joined: Wed Sep 27, 2017 4:17 pm
Location: Belgium; Antwerp

Re: "Polyline Pattern" Property

Post by CVH » Sun May 20, 2018 3:15 pm

I find this example screenshot misleading.
One can hardly see any differece.
Included an other.
Polyline Pattern 2.png
Polyline Pattern 2.png (5.35 KiB) Viewed 6166 times
