John Hyslop · Post by **John Hyslop** » Sun Mar 20, 2022 5:41 am

Well

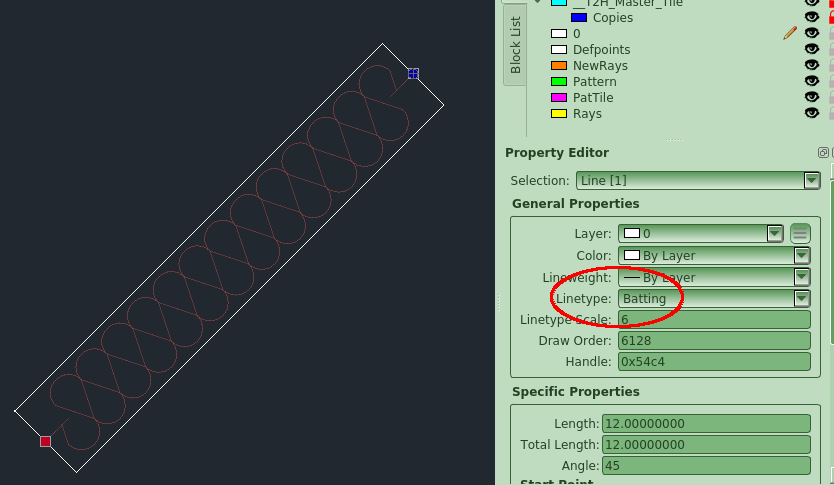

I didn't even know the linetype batting existed . learn something new every day lol

Cheers
John

: Batting.png (51.49 KiB) Viewed 35095 times

John Hyslop · Post by **John Hyslop** » Sun Apr 10, 2022 5:17 am

Hi All

Here's another addition to the Lattice Hatch Patterns..
This can be used to make lasercut screens..

Cheers
John Hyslop

LATTICE-14 - Metric and Imperial.zip: (1.73 KiB) Downloaded 1338 times

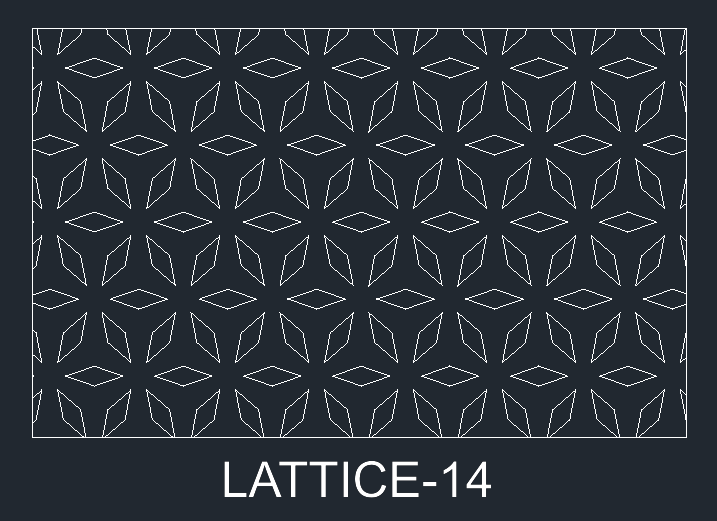

: LATTICE-14.png (16.42 KiB) Viewed 34942 times

John Hyslop · Post by **John Hyslop** » Mon Apr 11, 2022 6:56 am

Hi All

Here's another Lattice Pattern, this too can be used as a lasercut screen..
Cheers
John Hyslop

LATTICE-15 - Metric and Imperial.zip: (1.52 KiB) Downloaded 1433 times

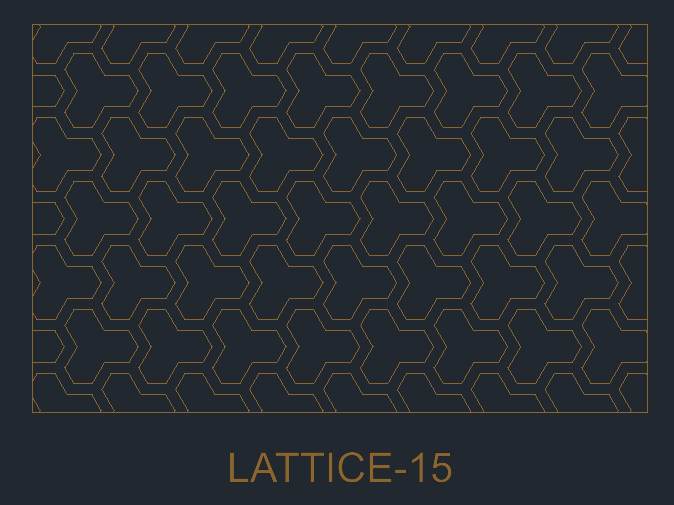

: LATTICE-15.png (12.78 KiB) Viewed 34886 times

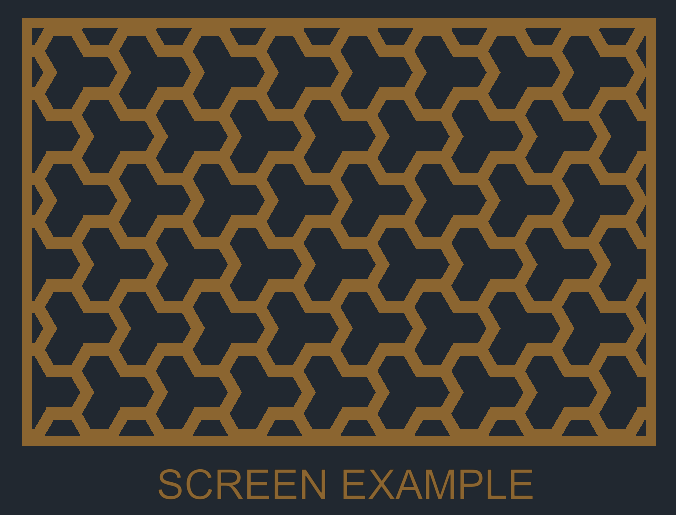

: Screen Example.png (15.33 KiB) Viewed 34884 times

John Hyslop · Post by **John Hyslop** » Mon Apr 18, 2022 5:48 am

Hi All

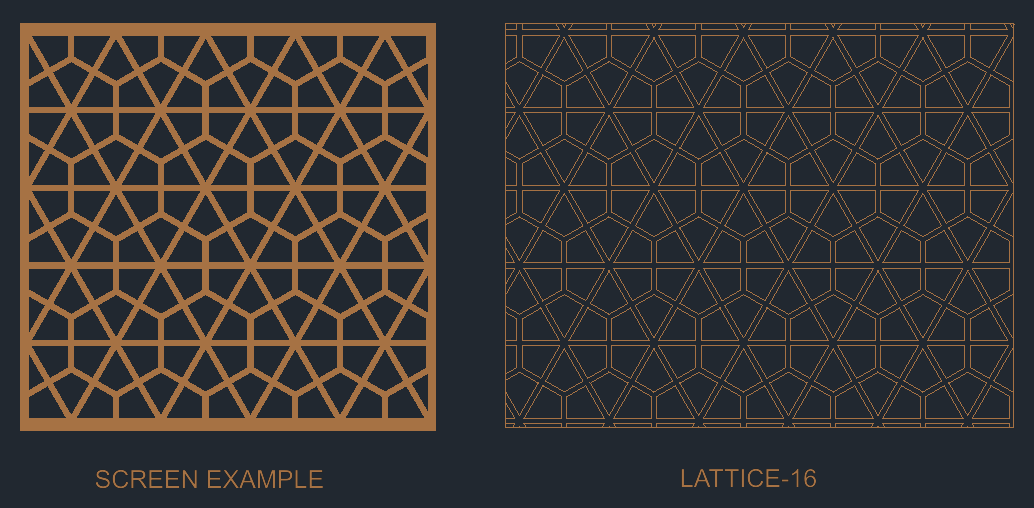

I Seem to be Stuck on Hexagonal Shapes

Another Addition to The Lattice Hatch Pattern Set..

Cheers
John Hyslop
.

LATTICE-16 - Metric and Imperial.zip: (1.84 KiB) Downloaded 1388 times

.

: LATTICE-16.png (31.27 KiB) Viewed 34824 times

John Hyslop · Post by **John Hyslop** » Thu Apr 21, 2022 5:48 am

Ok

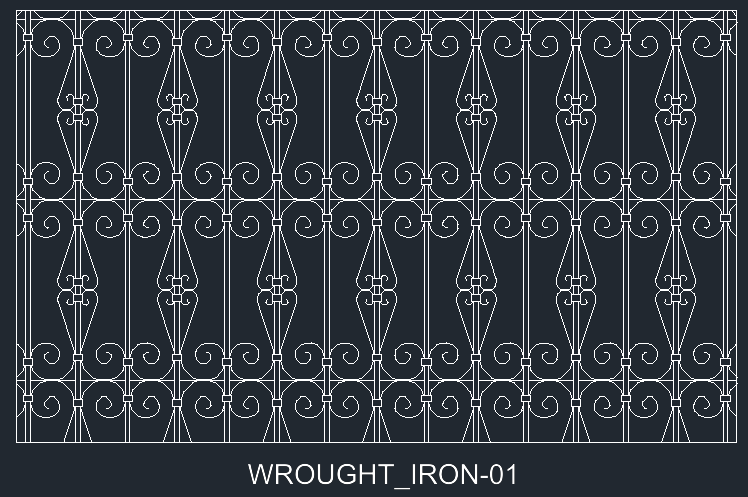

Here's a nice decorative Wrought Iron Pattern for Gates etc...
Surprisingly This is Very Low Lag.. I Had to Change The Angles a Few Times Though..
But Got There

Cheers
John Hyslop
.

WROUGHT_IRON-01 - Metric and Imperial.zip: (4.78 KiB) Downloaded 1416 times

.

: Wrought_Iron-01.png (20.79 KiB) Viewed 34583 times

John Hyslop · Post by **John Hyslop** » Sat Apr 23, 2022 4:06 am

Hi All

Here's another one...

Cheers
John Hyslop
.

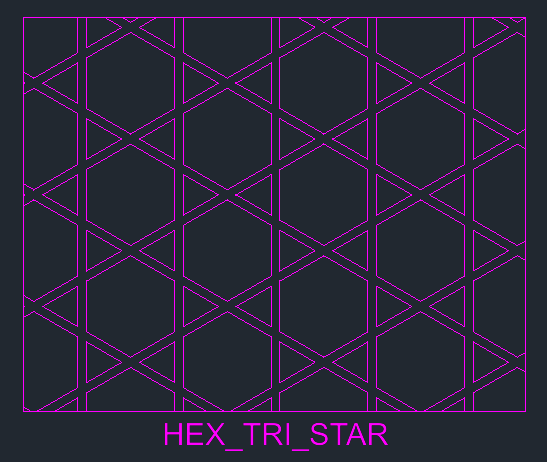

HEX_TRI_STAR - Metric and Imperial.zip: (1.45 KiB) Downloaded 1389 times

.

: HEX_TRI_STAR.png (13.02 KiB) Viewed 34520 times

John Hyslop · Post by **John Hyslop** » Wed May 25, 2022 8:47 am

Hi All

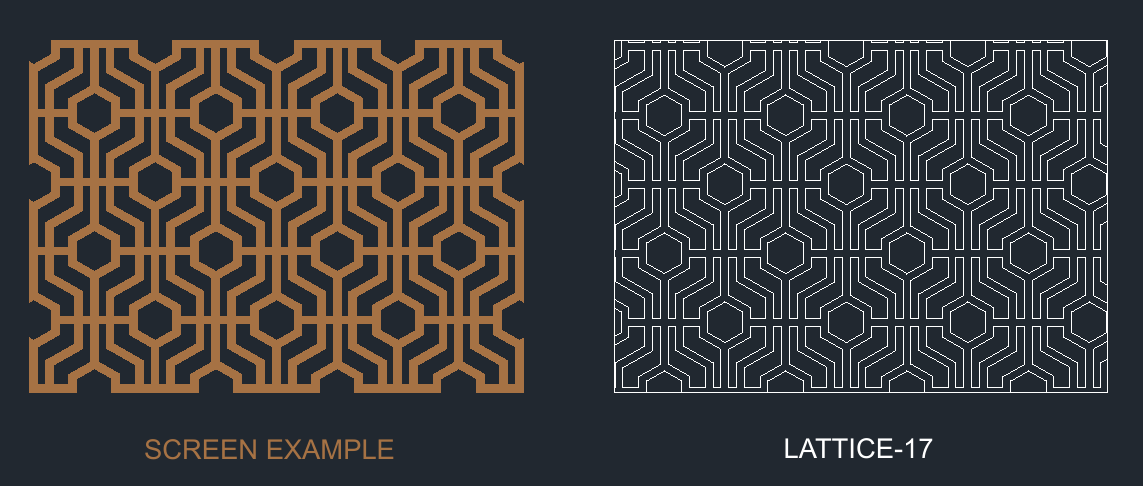

I just cannot get away from hexagonal shapes these days...

.

LATTICE-17 - Metric and Imperial.zip: (2.29 KiB) Downloaded 1393 times

: LATTICE-17.png (24.16 KiB) Viewed 34196 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Mon Jul 04, 2022 8:19 am

Hi All

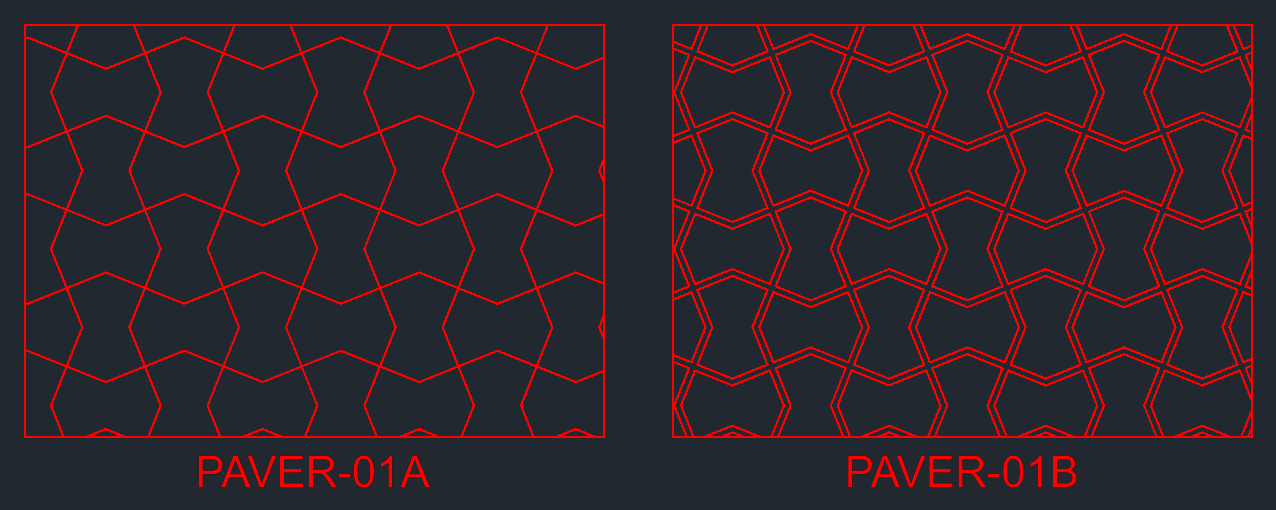

Here's the 1st set of patterns for pavers..
.

PAVER-01 A and B - Hatch Patterns - Metric and Imperial.zip: (2.5 KiB) Downloaded 1383 times

.

: Paver-01.png (39 KiB) Viewed 33668 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Mon Jul 04, 2022 9:30 am

Hi All

Here's another one ..

.

PAVER-02 A and B - Hatch Patterns - Metric and Imperial.zip: (2.3 KiB) Downloaded 1309 times

This is just a generic pattern, I saw it when I was out for a walk, I might upload additional patterns to match pavers you can buy similar to this... I just looked online and there is quite a variation of sizes so if anyone needs a particular size please post all the dimensions including the distance in from edges to the start of the angle plus the width at the narrowest point..

.

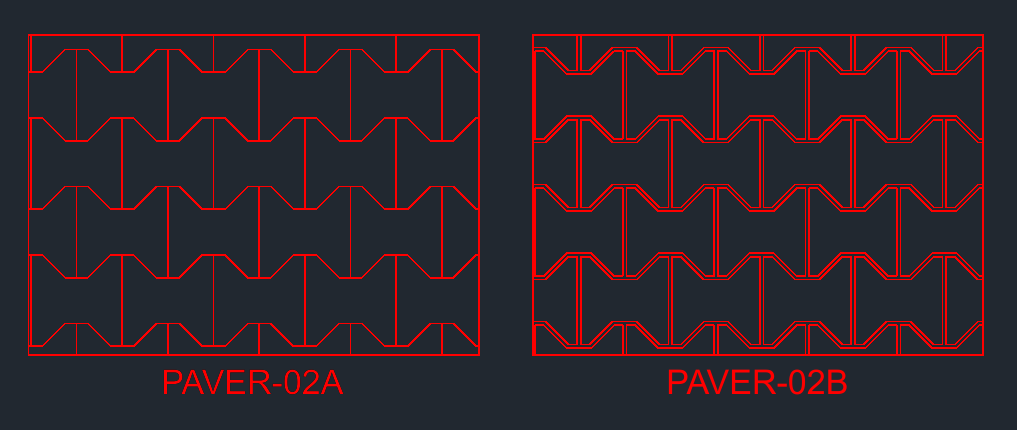

: Paver-02.png (19.58 KiB) Viewed 33661 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Tue Jul 05, 2022 2:48 am

Hi All

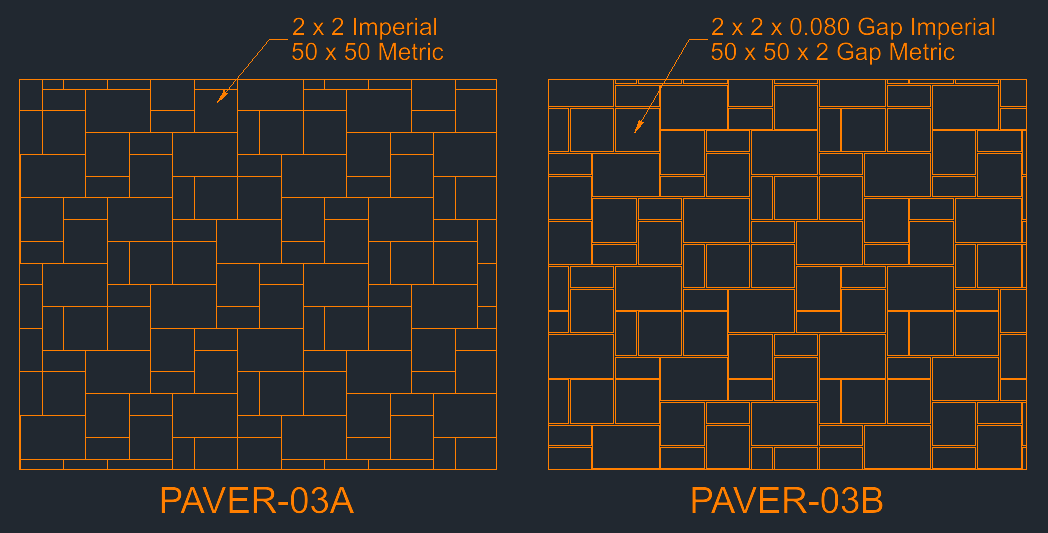

This Paver was originally created by CVH for forum user Gandalf..so I'm taking no credit on the design

I've kept the paver size 50x50 & 2x2 the same on each pattern but the other pavers vary a little because of the gap

.
Sorry I've just removed this as it has errors I'll upload again shortly it had 1 download

.
Imperial version was 25 times larger instead of smaller

.
Fixed
.

PAVER-03 A and B - Hatch Patterns - Metric and Imperial.zip: (3.3 KiB) Downloaded 1438 times

.

: PAVER-03.png (32.93 KiB) Viewed 33635 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Tue Jul 26, 2022 9:04 am

Hi All

These are common interlinked paving stones found around the world...
2 of them are very close to equivalent Imperial sizes and one is not

More to follow... in the next few days

.

PAVER-04_05_06 - Hatch Patterns - Metric and Imperial.zip: (68.17 KiB) Downloaded 1367 times

.

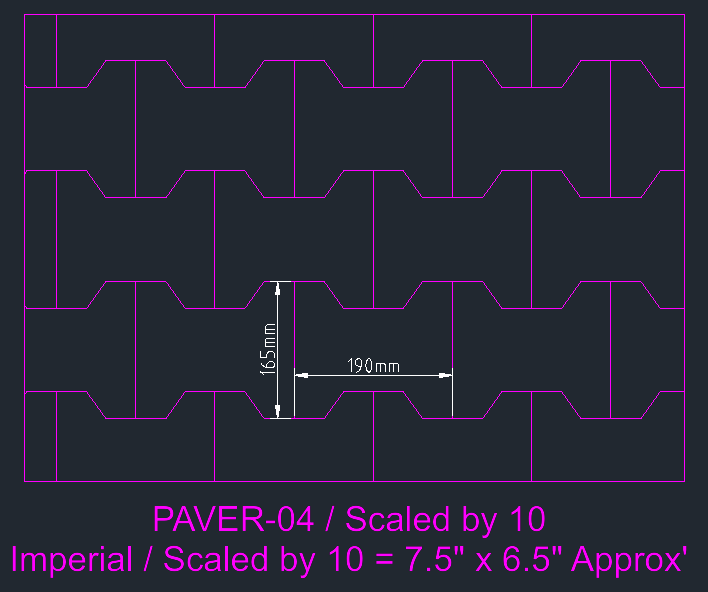

: PAVER-04.png (26.14 KiB) Viewed 33323 times

.

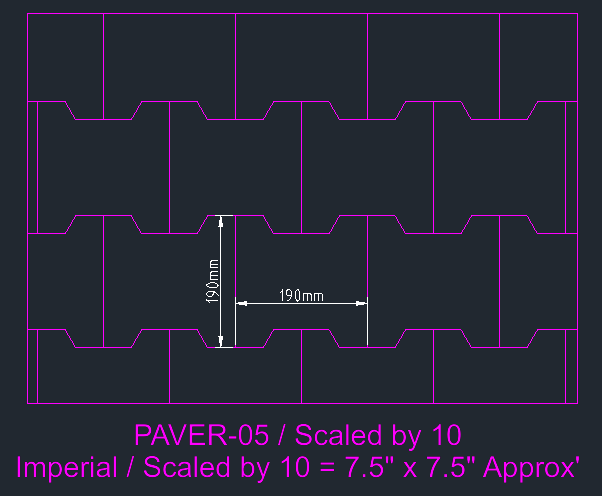

: PAVER-05.png (21.69 KiB) Viewed 33323 times

.

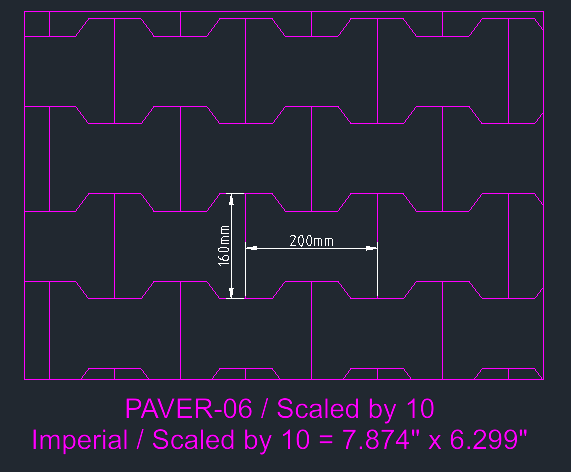

: PAVER-06.png (21.95 KiB) Viewed 33323 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Wed Jul 27, 2022 8:03 am

Hi All

Here's another common interlocking paving stone..
.

PAVER-07 - Hatch Pattern - Metric and Imperial.zip: (31.86 KiB) Downloaded 1267 times

.

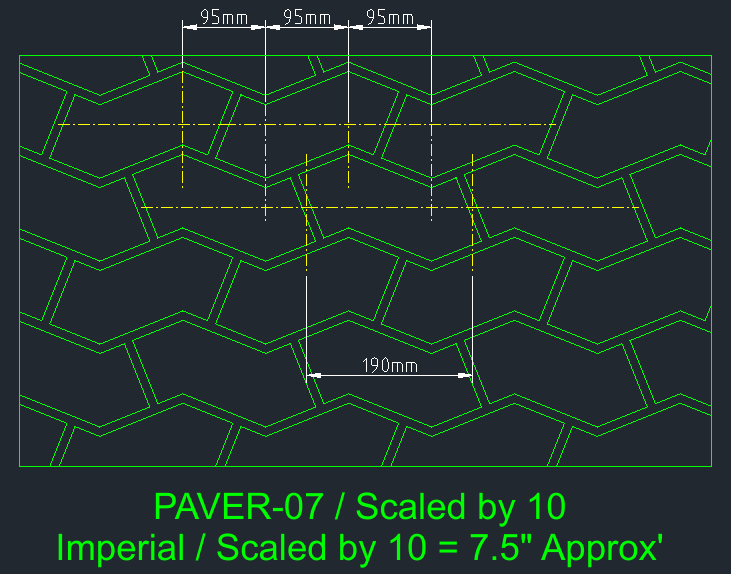

: PAVER-07.png (31.58 KiB) Viewed 33306 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Wed Jul 27, 2022 9:01 am

Hi All

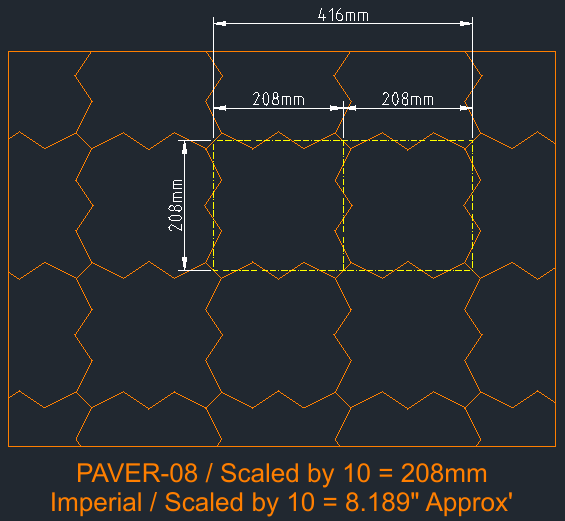

And another common interlocking paving stone..

.

PAVER-08 - Hatch Pattern - Metric and Imperial.zip: (26.51 KiB) Downloaded 1215 times

.

: PAVER-08.png (25.3 KiB) Viewed 33304 times

.
Cheers
John
PS Having a rest now..

John Hyslop · Post by **John Hyslop** » Mon Sep 05, 2022 5:56 am

Hi All

Here's another Lattice pattern...

.
.

LATTICE-18 - Metric and Imperial.zip: (1.45 KiB) Downloaded 1262 times

.
.

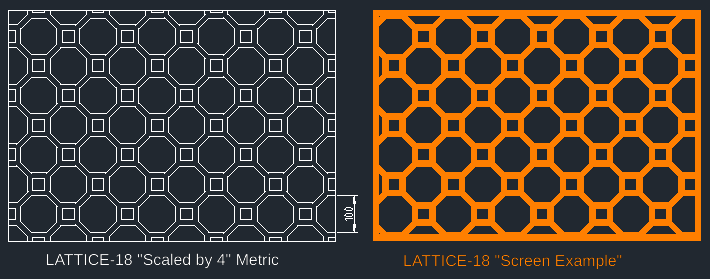

: LATTICE-18.png (15.22 KiB) Viewed 32605 times

.
Cheers
John Hyslop

John Hyslop · Post by **John Hyslop** » Sat Oct 15, 2022 6:04 am

Hi All

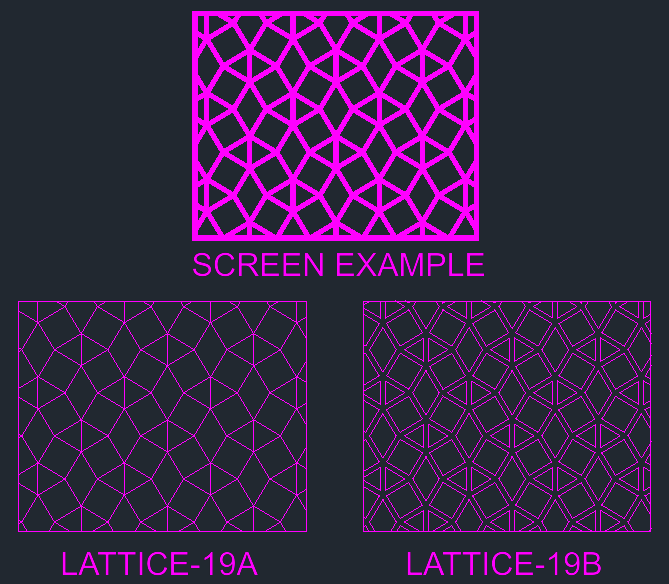

Another Lattice pattern... and a nice one for garden screens

.

LATTICE-19A and B - Metric and Imperial.zip: (2.92 KiB) Downloaded 1356 times

.

: Lattice-19.png (31.73 KiB) Viewed 31259 times

.
Cheers
John Hyslop
