I have QCAD Professional and Windows 10. The Isometric View Toolbar only shows the Isometric Grid on/off; and the (red) Top, Right and Left projection icons. Can't find the Isometric Toolbar Icon.
Entering Modify>Projection>Isometric Projection or pj yield "Unknown command". Can you help me please? Tim
[solved] Isometric projection
Moderator: andrew
Forum rules
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
-
timothywynnjones
- Junior Member
- Posts: 11
- Joined: Mon Sep 13, 2021 8:41 am
- Location: Sydney Australia
-
Husky
- Moderator/Drawing Help/Testing
- Posts: 5054
- Joined: Wed May 11, 2011 9:25 am
- Location: USA
Re: Isometric projection
Hi Tim,

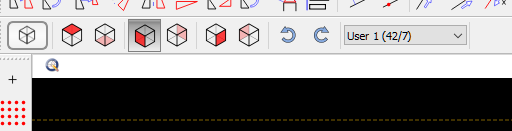

PJ is selection sensitive what means you have first to select entities. Select / launch PJ and an Option bar should pop up on the upper left hand of your drawing like this:timothywynnjones wrote: ↑Sat Oct 09, 2021 12:54 amEntering Modify>Projection>Isometric Projection or pj yield "Unknown command".
- Husky-2021.10.08-02.png (13 KiB) Viewed 3853 times
Work smart, not hard: QCad Pro
QcadPro, QcadCam, Win11/64, 64GB RAM, 10-Core, SSD
If a thread is considered as "solved" pls. change the title of the 1. post to "[solved] Title..."
QcadPro, QcadCam, Win11/64, 64GB RAM, 10-Core, SSD
If a thread is considered as "solved" pls. change the title of the 1. post to "[solved] Title..."
-
timothywynnjones
- Junior Member
- Posts: 11
- Joined: Mon Sep 13, 2021 8:41 am
- Location: Sydney Australia
Re: Isometric projection
Thank you so much Husky, all OK. A carton of slightly used beer cans is on it's way! Tim.
-
Husky
- Moderator/Drawing Help/Testing
- Posts: 5054
- Joined: Wed May 11, 2011 9:25 am
- Location: USA
Re: Isometric projection
Great. Thanks!timothywynnjones wrote: ↑Sat Oct 09, 2021 2:55 amThank you so much Husky, all OK. A carton of slightly used beer cans is on it's way! Tim.
