QCAD Bugtracker

  • Status Closed
  • Percent Complete
    100%
  • Task Type Bug Report
  • Category QCAD (main)
  • Assigned To
    andrew
  • Operating System All
  • Severity Low
  • Priority Very Low
  • Reported Version 3.0.0
  • Due in Version Undecided
  • Due Date Undecided
  • Votes 1
  • Private
Attached to Project: QCAD Bugtracker
Opened by andrew - 03.12.2012
Last edited by andrew - 18.06.2014

FS#731 - Break out segment: fails in some cases

See fs731.dxf

Closed by  andrew
18.06.2014 16:11
Reason for closing:  Fixed
Additional comments about closing:

https://github.com/qcad/q cad/commit/e8ea701dbe10dfe091cbac79196bb 7833ffccf42#diff-1

caigner commented on 02.02.2014 10:46

I am using Linux Version 3.4.5 of QCAD.

I just experienced the same problem with "Break out Segment".

I drew two circles and then lines from A to B to C to D. (see first screenshot)
All on the same layer. One circle is coloured in green to make it easier to see the problem.

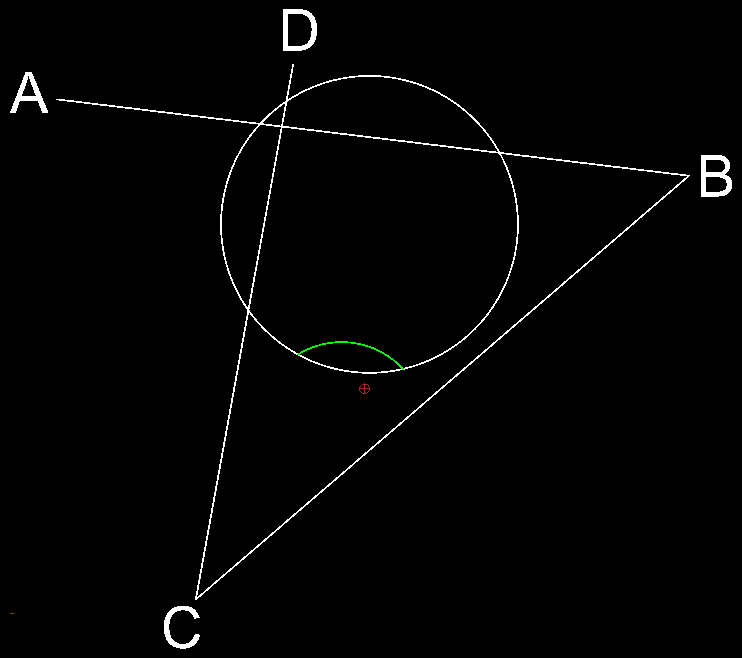

When I wanted to break out the segment of the green circle, which is outside of line BC, the result can be seen in the second screenshot.
