QCAD Bugtracker

  • Status Closed
  • Percent Complete
  • Task Type Bug Report
  • Category QCAD (main)
  • Assigned To
  • Operating System Ubuntu Linux
  • Severity Medium
  • Priority Very Low
  • Reported Version 3.1.1
  • Due in Version Undecided
  • Due Date Undecided
  • Votes 1
  • Private
Attached to Project: QCAD Bugtracker
Opened by Mihail Vasiliev - 17.06.2013
Last edited by Andrew - 18.06.2013

FS#831 - Multiple words of non-english language in Richtext are displayed on above other

Version - 3.1, binary.

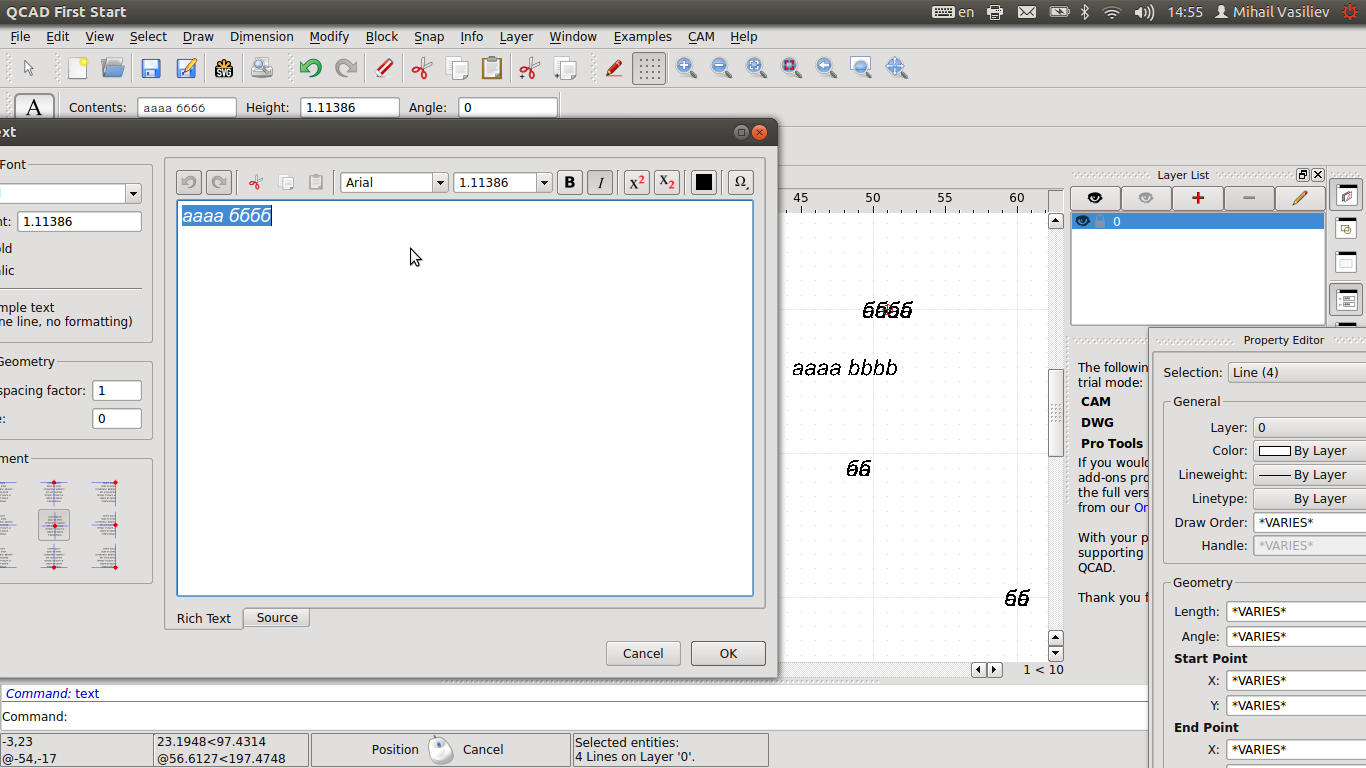

If I “Draw text” with text “aaaa bbbb” - it displays correctly, but when I enter “аааа бббб” (with russian keyboard) - I see that “аааа” and “бббб” are displayed one above other - see screenshot.

The same problem is for imported .dxf file with russian texts in it. Problem makes the solution as a whole actually inusable for (at least, some of) russian users.

Closed by  Andrew
18.06.2013 23:08
Reason for closing:  Fixed
Andrew commented on 17.06.2013 11:12

Unfortunately, this is a known problem with QCAD in combination with Qt 4.8.x.
To avoid this issue, QCAD would have to be compiled against Qt 4.7.4 instead.

For future releases, we might revert to Qt 4.7.4 on all platform. Currently, only the Windows package uses Qt 4.7.4.

Mihail Vasiliev commented on 17.06.2013 11:18

QCAD is the only Qt application with this kind of behavior on Qt 4.8 or not?

Andrew commented on 17.06.2013 11:20

That is entirely possible. Text rendering in the QCAD graphics view works differently from text rendering in the GUI.

Andrew commented on 18.06.2013 23:06

Found solution for Qt 4.8 (text painter paths require additional transformation, see https://github.com/qcad/qcad/commit/51ae0e84e3f79533cd82d73aeae92528e70dcb6d
