Implementation of an operation triggered when user clicks a reference point. More...

#include <RClickReferencePointOperation.h>

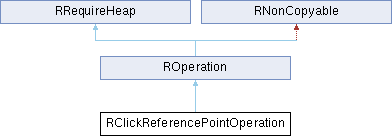

Inheritance diagram for RClickReferencePointOperation:

Public Member Functions
virtual RTransaction	apply (RDocument &document, bool preview=false)
	Applies this operation to selection in the given document.

	RClickReferencePointOperation (const RVector &referencePoint)
	Copyright (c) 2011-2018 by Andrew Mustun.

virtual	~RClickReferencePointOperation ()

Public Member Functions inherited from ROperation
RS::EntityType	getEntityTypeFilter () const

QString	getText () const

int	getTransactionGroup () const

bool	getTransactionType (RTransaction::Type t) const

RTransaction::Types	getTransactionTypes () const

	ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)

void	setAllowAll (bool on)

void	setAllowInvisible (bool on)

void	setKeepChildren (bool on)
	Keep child entities (e.g.

void	setRecordAffectedObjects (bool on)

void	setSpatialIndexDisabled (bool on)

void	setText (const QString &t)

void	setTransactionGroup (int g)

void	setTransactionType (RTransaction::Type t, bool on=true)

virtual	~ROperation ()

Public Member Functions inherited from RRequireHeap
void	doDelete ()

Private Attributes
RVector	referencePoint

Additional Inherited Members
Protected Member Functions inherited from RRequireHeap
virtual	~RRequireHeap ()

Protected Attributes inherited from ROperation
bool	allowAll

bool	allowInvisible

RS::EntityType	entityTypeFilter

bool	keepChildren

bool	recordAffectedObjects

bool	spatialIndexDisabled

QString	text

int	transactionGroup

RTransaction::Types	transactionTypes

bool	undoable

Detailed Description

Implementation of an operation triggered when user clicks a reference point.

Scriptable:\nThis class is available in script environments.\n

Constructor & Destructor Documentation

◆ RClickReferencePointOperation()

RClickReferencePointOperation::RClickReferencePointOperation ( const RVector & referencePoint )

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ ~RClickReferencePointOperation()

virtual RClickReferencePointOperation::~RClickReferencePointOperation ( )

inlinevirtual

Member Function Documentation

◆ apply()

RTransaction RClickReferencePointOperation::apply	(	RDocument &	document,
		bool	preview = false )

virtual

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Implements ROperation.

Member Data Documentation

◆ referencePoint

RVector RClickReferencePointOperation::referencePoint

private

The documentation for this class was generated from the following files:

src/operations/RClickReferencePointOperation.h
src/operations/RClickReferencePointOperation.cpp
