RDeleteSelectionOperation Class Reference
Operations Module

Implementation of an operation that deletes the selection of the given document to the clipboard. More...

#include <RDeleteSelectionOperation.h>

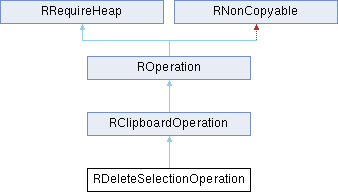

Inheritance diagram for RDeleteSelectionOperation:
RClipboardOperation ROperation RRequireHeap RNonCopyable

Public Member Functions

virtual RTransaction apply (RDocument &document, bool preview=false)
 Applies this operation to selection in the given document.

 RDeleteSelectionOperation ()
 Copyright (c) 2011-2018 by Andrew Mustun.

virtual ~RDeleteSelectionOperation ()

- Public Member Functions inherited from RClipboardOperation
void copy (RDocument &src, RDocument &dest, const RVector &offset, double scale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool selectionOnly, bool clear, bool toModelSpaceBlock, bool preview)

void copy (RDocument &src, RDocument &dest, const RVector &offset, double scale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool selectionOnly, bool clear, bool toModelSpaceBlock, bool preview, const RQMapQStringQString &attributes, const RQMapQStringQString &properties, const RQMapQStringQString &blockProperties)

QSharedPointer< RBlock > copyBlock (RObject::Id blockId, RDocument &src, RDocument &dest, bool overwriteBlocks, bool toCurrentBlock, const QString &blockName, RTransaction &transaction)

void copyEntity (REntity &entity, RDocument &src, RDocument &dest, const RVector &offset, double scale, double unitScale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool toModelSpaceBlock)

void copyEntity (REntity &entity, RDocument &src, RDocument &dest, const RVector &offset, double scale, double unitScale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool toModelSpaceBlock, const RQMapQStringQString &attributes)
 Adds the given entity (and its layer(s) and block reference(s)) to the given document.

QSharedPointer< RBlock > copyEntityBlock (REntity &entity, RDocument &src, RDocument &dest, bool overwriteBlocks, bool toCurrentBlock, const QString &blockName, RTransaction &transaction)

QSharedPointer< RLayer > copyEntityLayer (REntity &entity, RDocument &src, RDocument &dest, bool overwriteLayers, RTransaction &transaction)

QSharedPointer< RLinetype > copyEntityLinetype (REntity &entity, RDocument &src, RDocument &dest, bool overwriteLinetypes, RTransaction &transaction)

QSharedPointer< RLayer > copyLayer (RObject::Id layerId, RDocument &src, RDocument &dest, bool overwriteLayers, RTransaction &transaction)

QSharedPointer< RLinetype > copyLinetype (RObject::Id linetypeId, RDocument &src, RDocument &dest, bool overwriteLinetypes, RTransaction &transaction)

virtual RBlockReferenceEntity * createBlockReferenceEntity (RDocument &doc, RS::EntityType customEntityType, const RBlockReferenceData &data)

 RClipboardOperation ()
 Copyright (c) 2011-2018 by Andrew Mustun.

void setBlockOwnership (bool on)

void setCopyAllLayers (bool on)

void setCopyEmptyBlocks (bool on)

void setCustomEntityType (RS::EntityType t)

void setKeepSelection (bool on)

virtual ~RClipboardOperation ()

- Public Member Functions inherited from ROperation
RS::EntityType getEntityTypeFilter () const

QString getText () const

int getTransactionGroup () const

bool getTransactionType (RTransaction::Type t) const

RTransaction::Types getTransactionTypes () const

 ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)

void setAllowAll (bool on)

void setAllowInvisible (bool on)

void setKeepChildren (bool on)
 Keep child entities (e.g.

void setRecordAffectedObjects (bool on)

void setSpatialIndexDisabled (bool on)

void setText (const QString &t)

void setTransactionGroup (int g)

void setTransactionType (RTransaction::Type t, bool on=true)

virtual ~ROperation ()

- Public Member Functions inherited from RRequireHeap
void doDelete ()


Additional Inherited Members

- Protected Member Functions inherited from RRequireHeap
virtual ~RRequireHeap ()

- Protected Attributes inherited from ROperation
bool allowAll

bool allowInvisible

RS::EntityType entityTypeFilter

bool keepChildren

bool recordAffectedObjects

bool spatialIndexDisabled

QString text

int transactionGroup

RTransaction::Types transactionTypes

bool undoable


Detailed Description

Implementation of an operation that deletes the selection of the given document to the clipboard.

Scriptable:\nThis class is available in script environments.\n

Constructor & Destructor Documentation

◆ RDeleteSelectionOperation()

RDeleteSelectionOperation::RDeleteSelectionOperation ( )

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ ~RDeleteSelectionOperation()

virtual RDeleteSelectionOperation::~RDeleteSelectionOperation ( )
inlinevirtual

Member Function Documentation

◆ apply()

RTransaction RDeleteSelectionOperation::apply ( RDocument & document,
bool preview = false )
virtual

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Reimplemented from RClipboardOperation.

The documentation for this class was generated from the following files:
