RClipboardOperation Class Reference

Base class for clipboard related operations (copy, cut, paste). More...

#include <RClipboardOperation.h>

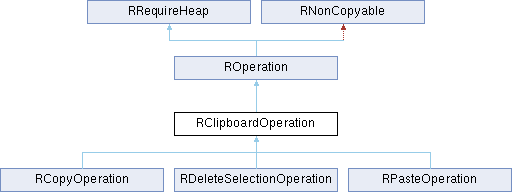

Inheritance diagram for RClipboardOperation:
ROperation RRequireHeap RNonCopyable RCopyOperation RDeleteSelectionOperation RPasteOperation

Public Member Functions

virtual RTransaction apply (RDocument &document, bool preview=false)
 Applies this operation to selection in the given document. More...

void copy (RDocument &src, RDocument &dest, const RVector &offset, double scale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool selectionOnly, bool clear, bool toModelSpaceBlock, bool preview, const RQMapQStringQString &attributes=RDEFAULT_QMAP_QSTRING_QSTRING, const RQMapQStringQString &properties=RDEFAULT_QMAP_QSTRING_QSTRING, const RQMapQStringQString &blockProperties=RDEFAULT_QMAP_QSTRING_QSTRING)

QSharedPointer< RBlockcopyBlock (RBlock::Id blockId, RDocument &src, RDocument &dest, bool overwriteBlocks, bool toCurrentBlock, const QString &blockName, RTransaction &transaction)

void copyEntity (REntity &entity, RDocument &src, RDocument &dest, const RVector &offset, double scale, double unitScale, double rotation, const RVector &center, bool flipHorizontal, bool flipVertical, bool toCurrentLayer, bool toCurrentBlock, bool overwriteLayers, bool overwriteBlocks, const QString &blockName, const QString &layerName, RTransaction &transaction, bool toModelSpaceBlock, const RQMapQStringQString &attributes=RDEFAULT_QMAP_QSTRING_QSTRING)
 Adds the given entity (and its layer(s) and block reference(s)) to the given document. More...

QSharedPointer< RBlockcopyEntityBlock (REntity &entity, RDocument &src, RDocument &dest, bool overwriteBlocks, bool toCurrentBlock, const QString &blockName, RTransaction &transaction)

QSharedPointer< RLayercopyEntityLayer (REntity &entity, RDocument &src, RDocument &dest, bool overwriteLayers, RTransaction &transaction)

QSharedPointer< RLinetypecopyEntityLinetype (REntity &entity, RDocument &src, RDocument &dest, bool overwriteLinetypes, RTransaction &transaction)

QSharedPointer< RLayercopyLayer (RLayer::Id layerId, RDocument &src, RDocument &dest, bool overwriteLayers, RTransaction &transaction)

QSharedPointer< RLinetypecopyLinetype (RLinetype::Id linetypeId, RDocument &src, RDocument &dest, bool overwriteLinetypes, RTransaction &transaction)

 RClipboardOperation ()
 Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual ~RClipboardOperation ()

- Public Member Functions inherited from ROperation
RS::EntityType getEntityTypeFilter () const

QString getText () const

int getTransactionGroup () const

 ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)

void setAllowAll (bool on)

void setAllowInvisible (bool on)

void setRecordAffectedObjects (bool on)

void setSpatialIndexDisabled (bool on)

void setText (const QString &t)

void setTransactionGroup (int g)

virtual ~ROperation ()

- Public Member Functions inherited from RRequireHeap
void doDelete ()


Private Attributes

QSet< RBlock::IdcopiedBlockContents

QMap< QString, QSharedPointer< RBlock > > copiedBlocks

QMap< QString, QSharedPointer< RLayer > > copiedLayers

QMap< QString, QSharedPointer< RLinetype > > copiedLinetypes


Additional Inherited Members

- Protected Member Functions inherited from RRequireHeap
virtual ~RRequireHeap ()

- Protected Attributes inherited from ROperation
bool allowAll

bool allowInvisible

RS::EntityType entityTypeFilter

bool recordAffectedObjects

bool spatialIndexDisabled

QString text

int transactionGroup

bool undoable


Detailed Description

Base class for clipboard related operations (copy, cut, paste).

Scriptable:\nThis class is available in script environments.\n

Constructor & Destructor Documentation

◆ RClipboardOperation()

RClipboardOperation::RClipboardOperation ( )

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ ~RClipboardOperation()

virtual RClipboardOperation::~RClipboardOperation ( )
inlinevirtual

Member Function Documentation

◆ apply()

virtual RTransaction RClipboardOperation::apply ( RDocument document,
bool  preview = false
)
inlinevirtual

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Implements ROperation.

Reimplemented in RPasteOperation, RCopyOperation, and RDeleteSelectionOperation.

◆ copy()

void RClipboardOperation::copy ( RDocument src,
RDocument dest,
const RVector offset,
double  scale,
double  rotation,
const RVector center,
bool  flipHorizontal,
bool  flipVertical,
bool  toCurrentLayer,
bool  toCurrentBlock,
bool  overwriteLayers,
bool  overwriteBlocks,
const QString &  blockName,
const QString &  layerName,
RTransaction transaction,
bool  selectionOnly,
bool  clear,
bool  toModelSpaceBlock,
bool  preview,
const RQMapQStringQString attributes = RDEFAULT_QMAP_QSTRING_QSTRING,
const RQMapQStringQString properties = RDEFAULT_QMAP_QSTRING_QSTRING,
const RQMapQStringQString blockProperties = RDEFAULT_QMAP_QSTRING_QSTRING
)
Non-Scriptable:\nThis function is not available in script environments.\n

◆ copyBlock()

QSharedPointer< RBlock > RClipboardOperation::copyBlock ( RBlock::Id  blockId,
RDocument src,
RDocument dest,
bool  overwriteBlocks,
bool  toCurrentBlock,
const QString &  blockName,
RTransaction transaction
)

◆ copyEntity()

void RClipboardOperation::copyEntity ( REntity entity,
RDocument src,
RDocument dest,
const RVector offset,
double  scale,
double  unitScale,
double  rotation,
const RVector center,
bool  flipHorizontal,
bool  flipVertical,
bool  toCurrentLayer,
bool  toCurrentBlock,
bool  overwriteLayers,
bool  overwriteBlocks,
const QString &  blockName,
const QString &  layerName,
RTransaction transaction,
bool  toModelSpaceBlock,
const RQMapQStringQString attributes = RDEFAULT_QMAP_QSTRING_QSTRING
)

Adds the given entity (and its layer(s) and block reference(s)) to the given document.

Non-Scriptable:\nThis function is not available in script environments.\n
Parameters
blockNameName of an existing block in dest

◆ copyEntityBlock()

QSharedPointer< RBlock > RClipboardOperation::copyEntityBlock ( REntity entity,
RDocument src,
RDocument dest,
bool  overwriteBlocks,
bool  toCurrentBlock,
const QString &  blockName,
RTransaction transaction
)

◆ copyEntityLayer()

QSharedPointer< RLayer > RClipboardOperation::copyEntityLayer ( REntity entity,
RDocument src,
RDocument dest,
bool  overwriteLayers,
RTransaction transaction
)

◆ copyEntityLinetype()

QSharedPointer< RLinetype > RClipboardOperation::copyEntityLinetype ( REntity entity,
RDocument src,
RDocument dest,
bool  overwriteLinetypes,
RTransaction transaction
)

◆ copyLayer()

QSharedPointer< RLayer > RClipboardOperation::copyLayer ( RLayer::Id  layerId,
RDocument src,
RDocument dest,
bool  overwriteLayers,
RTransaction transaction
)

◆ copyLinetype()

QSharedPointer< RLinetype > RClipboardOperation::copyLinetype ( RLinetype::Id  linetypeId,
RDocument src,
RDocument dest,
bool  overwriteLinetypes,
RTransaction transaction
)

Member Data Documentation

◆ copiedBlockContents

QSet<RBlock::Id> RClipboardOperation::copiedBlockContents
private

◆ copiedBlocks

QMap<QString, QSharedPointer<RBlock> > RClipboardOperation::copiedBlocks
private

◆ copiedLayers

QMap<QString, QSharedPointer<RLayer> > RClipboardOperation::copiedLayers
private

◆ copiedLinetypes

QMap<QString, QSharedPointer<RLinetype> > RClipboardOperation::copiedLinetypes
private

The documentation for this class was generated from the following files:
